Endeavor BA33 1/3 HP Sump Pump Package (12 Amp Total Output)

If you're having problems with keeping water out of your basement then this package will surely help! The Ion® Endeavor is a pump controller that senses a water level of up to 72", has a configurable water level/pump turn-on setting, the ability to run two pumps simultaneously, pump alternation, pump failure sensing, local audible/visual alarm notification, local alarm silencing, and remote alarm notification.  You can set it and forget it leaving the work to Ion!

• First of a kind 115-volt standard plug-in receptacle, dual pump run and alternating controller for residential and commercial applications
• Ion® sensors communicate with controller to provide controller-based turn on level adjustment from 2.5" to 72" for optimal pump operation
• Track critical information through the panel-based display, including switch failure, pump amp draw, water level and more
• Wide range of communication options available
• Energy efficient motor
• Carbon ceramic mechanical seal
• Thermal overload protection
• Ion® digital level control sensor has no moving parts
• Stainless steel screen prevents debris from entering the pump
• 3-year warranty

Package Includes:

• 1, Ion Endeavor Controller (12-amp total output)
• 2, BA33M 1/3 HP Sump Pumps

System Specification

• Typical Applications: Basement sump/Dewatering/Septic tank effluent
• Maximum Capacity: Up to 68 GPM
• Maximum Head: Up to 29'
• Electrical Data: 115 V, 1 Ø, 4.5 FLA, 60 Hz
• Motor Data: 1/3 HP, 3450 RPM
• Recommended Minimum Basin Size: 18" x 24"
• Materials of Construction: Cast iron & stainless steel
• Power Cord: Pump/Sensors - 10'
• Discharge: 1.5" NPT
• Solids Handling: 1/2"

Documents

• Ion Endeavor Brochure
• Ion Endeavor Operation Manual
• Ion Technologies BA Series Pump Operation Manual

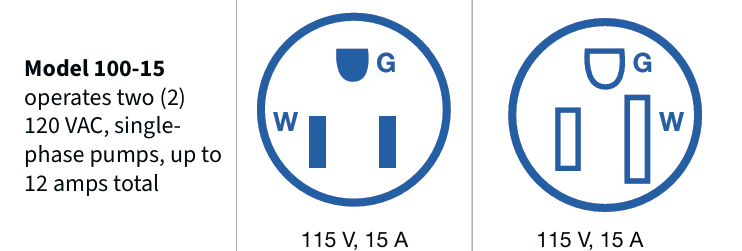

 AC Outlet Style:
