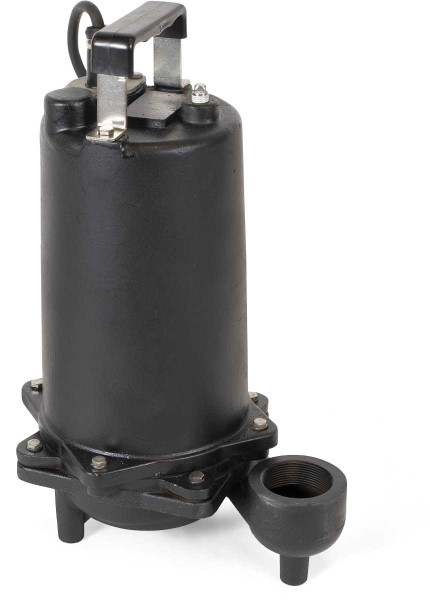

Ion Technologies ES50M-23 Effluent Pump - 1/2 HP / 230 VAC 3 Phase (MTW20611)

ES50M-23 1/2 HP Effluent Pump 230 VAC 3 Phase

Ion Effluent Pumps

MSRP: $2,279.00
$2,187.84
(You save $91.16 )
SKU:
MTW20611
Weight:
78.00 LBS
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 3% off
Adding to cart… The item has been added

Description

ES50 1/2 HP Effluent Pump - 230 VAC 3 Phase (MTW20611)

Typical Applications

  • Septic tank effluent
  • Dewatering
  • High head sump

Brochure

Operations Manual

Features

  • Carbon ceramic mechanical seal
  • Automatic reset thermal overload for maximum protection
  • Lower single-row ball-bearing construction
  • 20' power cord
  • 3 year warranty

ES50 - Specifications

Typical Applications Septic tank effluent
Dewatering
High head sump
Maximum Capacity
  • ES50: Up to 108 GPM
  • ES100: Up to 135 GPM
Maximum Head
  • ES50: Up to 53′
  • ES100: Up to 82
Electrical Data

ES50M-1: 115 V, 1 Ø, 12 FLA, 60 Hz
ES50M-21: 230 V, 1 Ø, 6 FLA, 60 Hz
ES50M-03: 208 V, 3 Ø, 3.5 FLA, 60 Hz
ES50M-23: 230 V, 3 Ø, 3.2 FLA, 60 Hz
ES50M-43: 460 V, 3 Ø, 1.6 FLA, 60 Hz
ES100M-21: 230 V, 1 Ø, 12 FLA, 60 Hz
ES100M-03: 208 V, 3 Ø, 6.6 FLA, 60 Hz
ES100M-23: 230 V, 3 Ø, 6.0 FLA, 60 Hz
ES100M-43: 460 V, 3 Ø, 3.0 FLA, 60 Hz
Motor Data  ½-1 HP, 3450 RPM
Recommended Minimum Basin Size 18" x 30"
Automatic Operation i: Ion Digital Level Control (standard)
W: Wide angle float
Manual Operation M: Manual
Materials of Construction Cast iron
Impeller Cast iron - 2 vane closed
Power Cord 1Ø: 16/3C-20'
3Ø: 16/4C-20'
Discharge 2" NPT
Solids 3/4"
!
