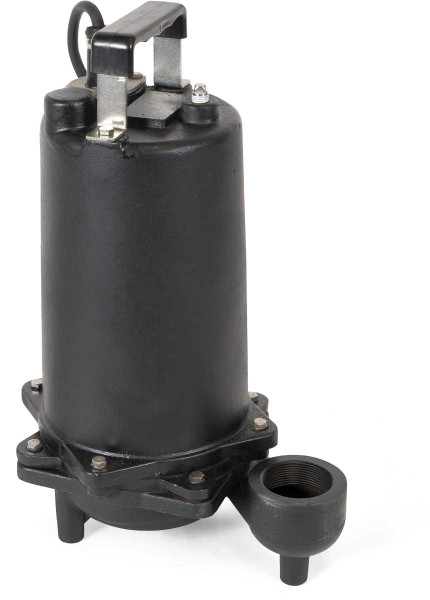

Ion Technologies ES100M-23 Effluent Pump - 1 HP / 230 VAC 3 Phase (MTW20606)

ES100M-23 1 HP Effluent Pump 230 VAC 3 Phase

Ion Effluent Pumps

MSRP: $2,472.00
$1,854.00
(You save $618.00 )
SKU:
MTW20606
Weight:
78.00 LBS
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 3% off
Adding to cart… The item has been added

Description

ES100 1 HP Effluent Pump - 230 VAC 3 Phase

Model: ES100M-23 / Part #: MTW20606

Typical Applications

  • Septic tank effluent
  • Dewatering
  • High head sump

Brochure

Operations Manual

Features

  • Carbon ceramic mechanical seal
  • Automatic reset thermal overload for maximum protection
  • Lower single-row ball-bearing construction
  • 20' power cord
  • 3 year warranty

ES100 - Specifications

Typical Applications
  • Septic tank effluent
  • Dewatering
  • High head pump
Maximum Capacity Up to 108 GPM
Maximum Head Up to 53′
Electrical Data 230 V, 3 Ø, 6.0 FLA, 60 Hz
Motor Data 1 HP, 3450 RPM
Recommended Minimum Basin Size 18" x 30"
Manual Operation Manual (Optional Switch)
Materials of Construction Cast iron
Impeller Cast iron 2 vane closed
Power Cord 20′
Discharge 2" NPT
Solids ¾″

Warranty Information

3 Years
!
