Product Overview

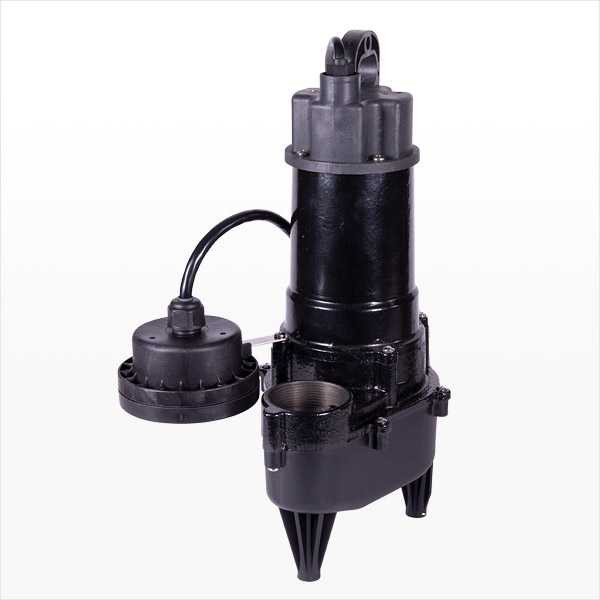

Ion X-ONEi - 1/2 HP, 115 VAC, Single Phase Sewage Pump With Ion Digital Level Switch (M5000A4107)
X-ONEi Brochure
Operations Manual
Ion Digital Level Control Brochure
Applications:
- Basement Sump
- Septic Tank Effluent
- Sewage Ejector
Features:
- Features
- Carbon ceramic mechanical seal
- Oil-filled motor with automatic reset thermal overload protection
- Upper and lower single-row ball-bearing construction
- Piggyback Ion® digital level control switch has no moving parts (standard)
- 3 year warranty
Specifications:
| Maximum Capacity | Up to 80 GPM |
| Maximum Head | Up to 20′ |
| Electrical Data | 115 V, 1 Ø, 8.2 FLA, 60 Hz |
| Motor Data | ½ HP, 3450 RPM |
| Intermittent Liquid Temperature | 120° F |
| Recommended Minimum Basin | Size 18″ x 24″ |
| Automatic Operation | Ion Digital Level Control |
| Materials of Construction | Cast iron & engineered thermoplastic |
| Power Cord | 10' |
| Standard Discharge | 2″ with 1½″ reducer |
| Solids | 1½″ to 2″ |
