Under Sink Basin With Ion+ Connect W-Fi Sump Pump Controller and Sump Pump Battery Backup

System Components:

Note: During installation, remove the vertical switch from the WC33 sump pump and mount the Ion+ Connect sensor using the pipe bracket. Locate sensor as close to the pump discharge as possible.

Under Sink Basin Package

• WC33V With Vertical Switch

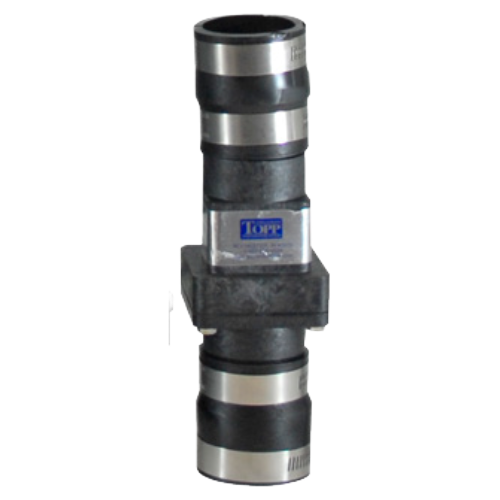

• 1½" Check Valve

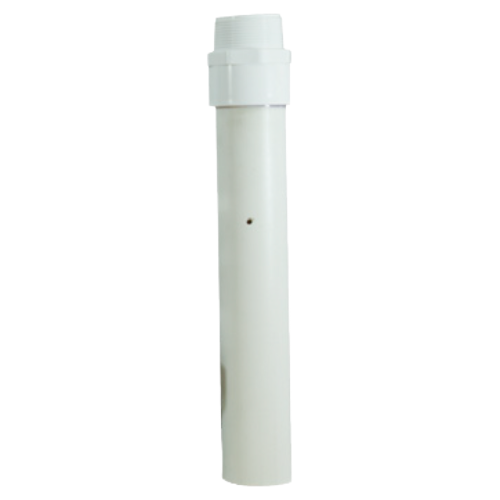

• 1½" x 12" Sch. 40 PVC Discharge Pipe

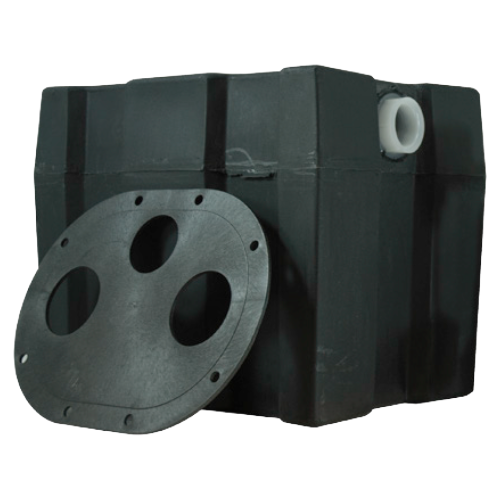

• Poly Water Box With Cover

Under Sink Basin Package Brochure

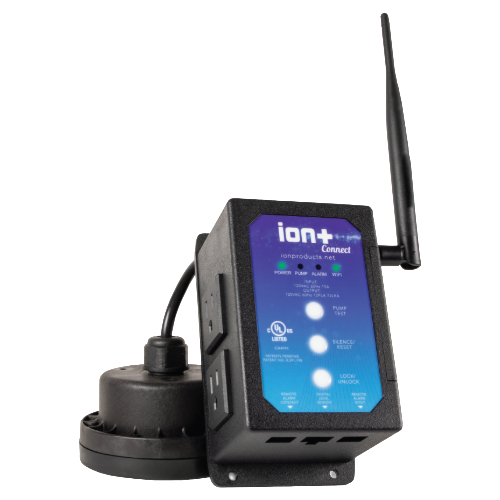

Ion+ Connect Wi-Fi Controller

Features

• Monitoring Capabilities:
• Perform a sump pump test at any time to ensure it is operating correctly.
• Water level within the sump pit (via the Ion+ Connect’s equipped Ion Digital Level Sensors).
• Status of power within the home.
• Surrounding temperature within the basement (which may signal HVAC issue, minimize potential for pipe freezing in cold weather climates).
• Sends Customized Alerts:
• When the sump pump is not working.
• When water rises to a specific level within the sump pit.
• When a power outage occurs (and when power is restored).
• When the basement temperature moves above or below specified set points.
• Wi-Fi network communications.
• Status updates and setting adjustments via dedicated app (iOS and Android devices) and website (desktops or laptops).
• Notifications via voice, push notifications and email.
• Multi-user privilege settings perfect for property managers or contractors.
• Automatic simplex or duplex operation:
• Allows for the running of either one or two sump pumps.
• Its true duplex capability allows for the running of two pumps at the same time.
• Integration with the Amazon Alexa smart control speaker.

Specifications

• Cloud-connected controller equipped with solid-state sensor detects water levels, pumping activity, and key application conditions.
• Pump activities and conditions remotely accessible to end users for monitoring and alarm configuration on the free Ion Blue app (Apple App Store or Google Play Store).
• True duplex operation can run two pumps at the same time or alternate pumps each cycle
  Easily adjust pumping turn on/off with customizable water level set points up to 72″.
• Configured alarm notifications keeps users aware of real-time threats and activities of interest
  Integrates with external property security system via remote alarm contact.
• User-friendly Ion Blue app accessible on iOS and Android smart phones.
• Intrinsically safe barrier availability'
• Amp Rating: 12 FLA, 15 amp max
• Part Number: iNPC20582
• One year warranty

Cloud Subscription

There is a $24 per year Ion Cloud services fee that is used for the Ion Blue App.

Ion+ Connect Wi-Fi Operations Manual
Ion+ Connect Introduction Video
Ion+ Connect Installation and Setup Video
Ion+ Connect Troubleshooting Video

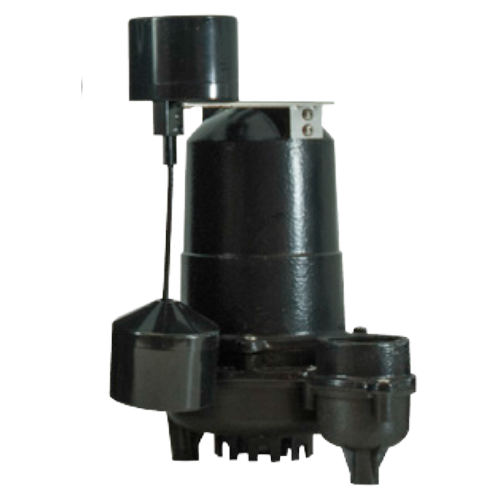

WC33V Sump Pump

Specifications

• Maximum Capacity: Up to 45 GPM
• Maximum Head: Up to 24′
• Electrical Data: 115 V, 1 Ø, 4 FLA, 60 Hz
• Motor Data ⅓ HP, 3450 RPM
• Pump Control: Vertical float switch
• Materials of Construction: Cast iron & engineered thermoplastic
• Power Cord: 10′ Standard
• Discharge: 1½″ NPT
• Solids ½″
• Carbon ceramic mechanical seal
• Oil-filled high efficiency PSC motor that uses half the AC power of most ⅓ HP pumps
• 3 year warranty

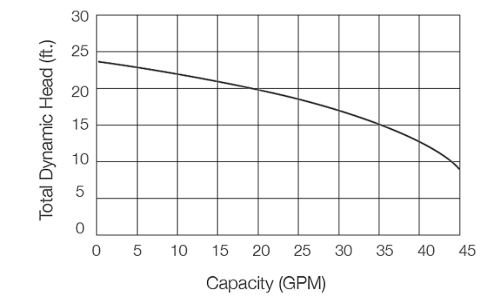

WC33 Sump Pump Performance

WC33 Sump Pump Dimensions

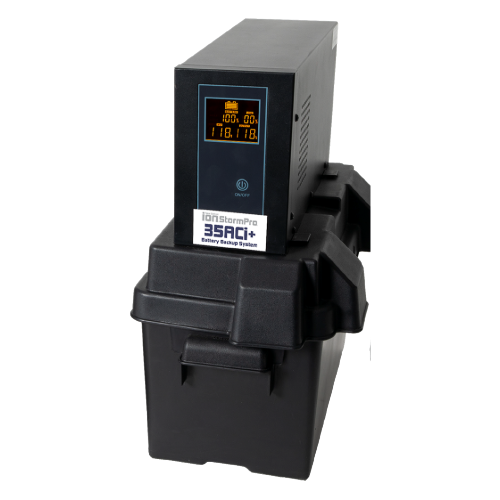

35AC Sump Pump Battery Backup System

Features

• Fully automatic auxiliary power source
• Backup system runs on AC or DC power
• Runs the same ⅓ HP pumps during a power outage
• Designed to power the BA33 sump pump.
• Fully automatic, converts 12 volt DC to 120 volt AC when power is lost
• Runs ⅓ HP pump on AC or DC power
• Inverter has digital display, tells status of system at all times
• Can use Power+deep cycle AGM battery for extended run time (Power+ battery is NOT included)
• Non-corrosive battery enclosure
• Quick and easy installation
• 3-year warranty (if used with a BA33 or WC33 sump pump)

System Specifications

• Inverter: 800 va/12 V
• Jumpers
• Battery Box

Operation Manual
