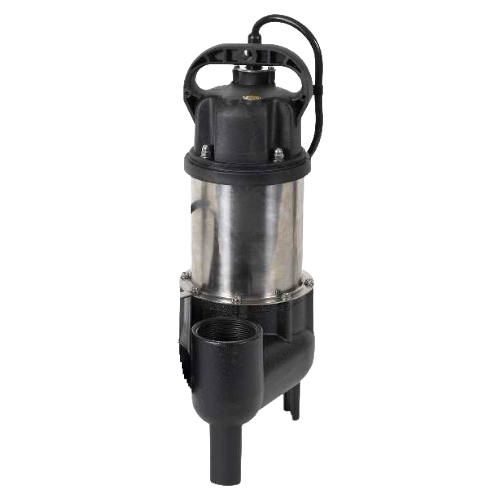

Product Overview
This pump series is suitable to pump water and also can be used both for permanent and temporary installation. The pump can be placed in a sump or sewage pit and is capable of passing 2″ spherical solids.
Applications:
-
Light commercial sewage
-
Residential sewage
-
High-capacity sump
-
Septic tank effluent
Features:
- Carbon ceramic mechanical seal
- Automatic reset thermal overload for maximum protection
- Lower single-row ball-bearing construction
- 3 year warranty
Specifications:
- Maximum Capacity: Up to 155 GPM
- Maximum Head: Up to 32′
- Electrical Data: 208-230 V, 1 Ø, 7.7-7 FLA, 60 Hz
- Motor Data: 1 HP, 3450 RPM
- Intermittent Liquid: Temperature 130° F
- Recommended Minimum Basin Size: 18″ x 30″
- Operation: Manual (no switch)
- Materials of Construction: Cast iron and stainless steel
- Impeller: Cast iron vortex
- Power Cord: 20′ Standard
- Discharge: 2″ NPT, 3" optional
- Solids Handling: 2″
