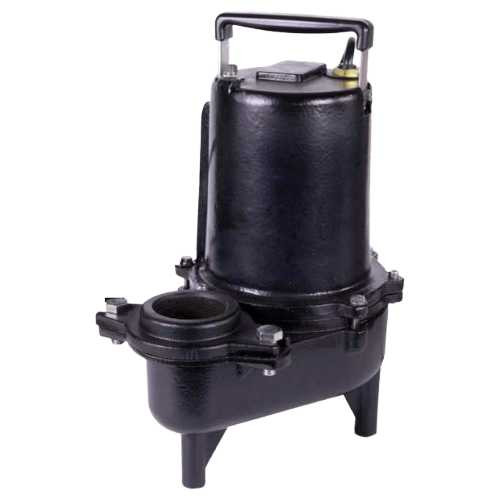

The SHV40M sewage pump is the best value in efficiency and reliability. It is an economical & reliable alternative to commercial grade sewage ejectors, built specifically for residential usage which costs less to operate than typical sewage ejector pumps. The SHV40i is made of heavy-duty, cast iron and stainless steel construction which will provide years of reliable operation.

Brochure

Operations Manual

Applications:

• Light commercial sewage
• Residential sewage
• High-capacity sump
• Septic tank effluent

Features:

• Carbon ceramic mechanical seal
• Automatic reset thermal overload for maximum protection
• Lower single-row ball-bearing construction
• 3 year warranty

Specifications:

• Maximum Capacity: Up to 90 GPM
• Maximum Head: Up to 25′
• Electrical Data
• 115 V, 1 Ø, 8.5 FLA, 60 Hz•
• 230 V, 1 Ø, 4.3 FLA, 60 HZ
• Motor Data 1/2 HP, 3450 RPM
• Intermittent Liquid: Temperature 130° F
• Recommended Minimum Basin Size: 18″ x 30″
• Automatic Operation: No switch
• Materials of Construction: Cast iron and stainless steel
• Impeller: Cast iron vortex
• Power Cord: 20′ Standard
• Discharge: 2″ NPT
• Solids Handling: 2″
