Package Includes

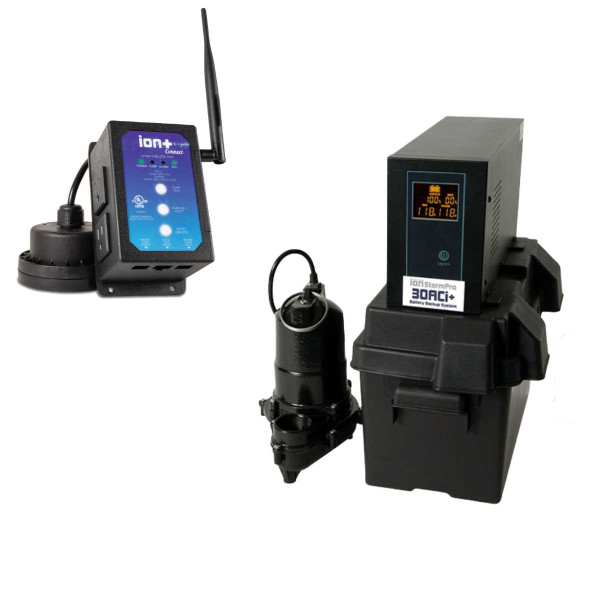

• (1) Ion 30ACi backup system
• (1) Ion WC33 1/3 HP Sump Pump
• (1) Ion+ Connect Sump Pump Controller

Features and Specifications

Ion 30ACi Backup Features

• Fully automatic, converts 12 volt DC to 120 volt AC when utility power is off
• Ion Connect+ controller alternates each pump and alarms
• Runs ⅓ HP pumps on AC or DC power
• Inverter has digital display, tells status of system at all times
• Single battery case (can select additional battery add-on kit as an option to double backup runtime)
• Uses 12 volt deep cycle AGM battery (battery optional)
• Non-corrosive battery enclosure
• Quick and easy installation
• 3-year warranty

Ion 30ACi Backup Specifications

• Mains A.C. Lower Voltage Limit 90 VAC ± 5V
• Output Voltage with Full Load 110 - 120V ± 10 V
• Maximum Output Power 4.0 FLA
• Battery Lower Voltage Limit 10.5 VDC ± 0.2 V
• Output Frequency
• Main Output Frequency Same as Input
• DC Input 12 VDC
• Battery Charger Boost Voltage 13.7 ± 0.2 V
• Overload 130% ± 3% (With Auto Reset Function)
• 3-year warranty

Ion+ Connect Features

• Monitoring Capabilities:
• Perform a sump pump test at any time to ensure it is operating correctly.
• Water level within the sump pit (via the Ion+ Connect Ion Digital Level Sensors).
• Status of power within the home.
• Surrounding temperature within the basement (which may signal HVAC issue, minimize potential for pipe freezing in cold weather climates).
• Sends Customized Alerts:
• When the sump pump is not working.
• When water rises to a specific level within the sump pit.
• When a power outage occurs (and when power is restored).
• When the basement temperature moves above or below specified set points.
• Connects to the Cloud via Wi-Fi or Cellular (Verizon) networks.
• Remotely schedule to test run your pump automatically. Options include to schedule daily, every 30 days, or in between to avoid prolonged inactivity and to confirm operational status.
• Status updates and setting adjustments via dedicated app (iOS and Android devices) and website (desktops or laptops).
• Notifications via voice, push notifications and email.
• Multi-user privilege settings perfect for property managers or contractors.
• Automatic simplex or duplex operation:
• Allows for the running of either one or two sump pumps.
• Its true duplex capability allows for the running of two pumps at the same time.
• Integration with the Amazon Alexa smart control speaker.
• The Ion+ Connect is a multi-platform communicator that provides monitoring capabilities of the sump pump and surrounding conditions in the basement. At any time and from any place, the Ion+ Connect gives homeowners a head’s up when a potential problem arises, providing ample opportunity to address the issue early, as opposed to potentially coming home later to an unwelcome surprise. The Ion+ Connect is especially ideal for property managers and homeowners with vacation homes. Our busy days move us around from place to place. Homeowners can receive real-time status updates and emergency alerts from their preferred device.

Ion+ Connect Specifications

• Remote Alarm Contacts: Normally Closed, 30 VAC/DC @ 1 A
• Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F)
• Audible Alarm: > 90 dB at 2 feet
• Enclosure: NEMA-1 Polycarbonate
• Dimensions (controller): 6.125” x 3.25” x 3”
• Dimensions (sensor): 4.62” x 4.62”, mounting straps: 5.25” x 3.50”
• Mounting: Up to #10 screws

Ion+ Connect Cloud Subscription

Ion Cloud services fee that is used for the Ion Blue App. Cloud plan including Ion+ Connect portal access and alarm notifications.

• Wi-Fi:
  • $24/year
• Cellular:
  • $48/Year - Typically, good for applications with less than 800 pump duty cycles a month.
  • $84/Year - Typically, good for applications with less than 1600 pump duty cycles a month.
  • $168/Year - Typically, good for applications with more than 3200 pump duty cycles a month.
