Features

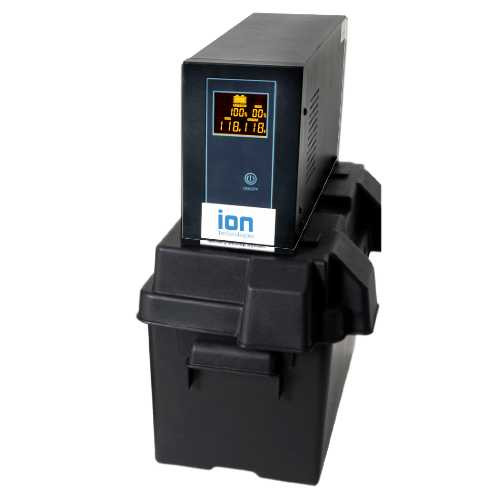

• Fully automatic auxiliary power source
• Backup system runs on AC or DC power
• Runs the same ⅓ HP pumps during a power outage
• Designed to power the BA33 sump pump.
• Fully automatic, converts 12 volt DC to 120 volt AC when power is lost
• Runs ⅓ HP pump on AC or DC power
• Inverter has digital display, tells status of system at all times
• Can use Power+deep cycle AGM battery for extended run time (Power+ battery is NOT included)
• Non-corrosive battery enclosure
• Quick and easy installation
• 3-year warranty (if used with a BA33 or WC33 1/3 HP sump pump)

System Specifications

• Inverter: 800 va/12 V
• Mains A.C. Lower Voltage Limit
  • 90 VAC ± 5V
• Output Voltage with Full Load
  • 110 - 120V ± 10 V
• Maximum Output Power:
  • 5.5 FLA
• Battery Lower Voltage Limit
  • 0.5 VOC ± 0.2 V
•  Main Output Frequency
  • Same as Input
• DC Input
  • 12 VDC
• Battery Charger Boost Voltage
  • 13.7 ± 0.2 V
• Overload
  • 130% ± 3% (With Auto Reset Function)
• Jumpers
• Battery Box
• Operation Manual
