Ion Sump Pump - SH30i 3/10 HP Sump Pump w/ Level Control (MTW20424)

SH30i 3/10 HP Sump Pump With Level Control - MTW20424

Ion Sump Pumps

MSRP: $633.00
$398.79
(You save $234.21 )
(No reviews yet) Write a Review
SKU:
MTW20424
Weight:
23.00 LBS
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 3% off
Adding to cart… The item has been added

Ion SH30i 3/10 HP Sump Pump

  • 3/10 HP submersible sump pump with the versatility for pumping ground, surface, or effluent water with up to 3/4'' solids.
  • Rated at 27 GPM of pumping capacity (at 10' of head), suitable for basement sump, septic tank effluent, or dewatering applications.
  • Cast iron housing provides solid protection from wear and tear during routine or excessive use.
  • The Ion Switch controls pump without moving parts or contact points, eliminating the risk of mechanical failure commonly associated with conventional switches.

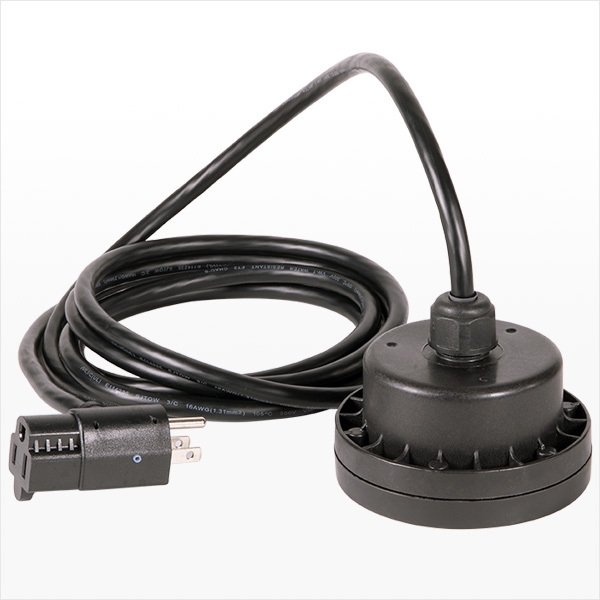

Ion Switch

Piggyback-style switch with no moving parts or contact points. Solid-state sensing enhances pump on/off control without the mechanical shortcomings of traditional float switches.

  • Proprietary digital level control first pioneered for residential sump and sewage pumps in 2010.
  • Extends average pump life with proven stationary design that out-performs mechanical switches.



Performance

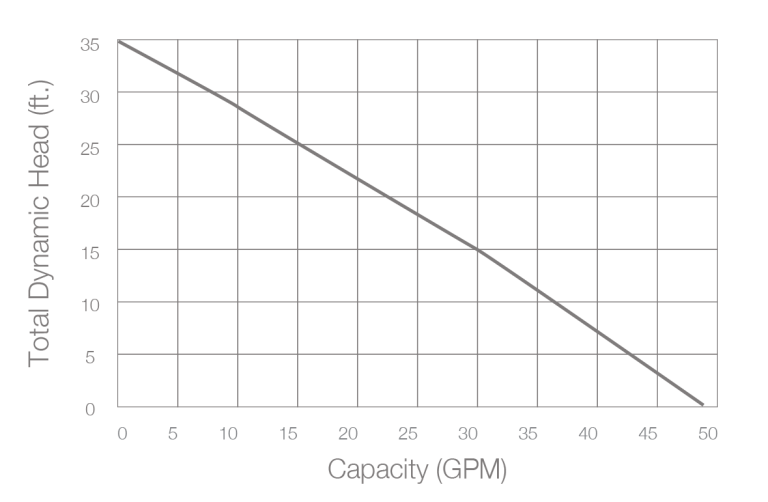

SH30i Sump Pump Performance

Dimensions

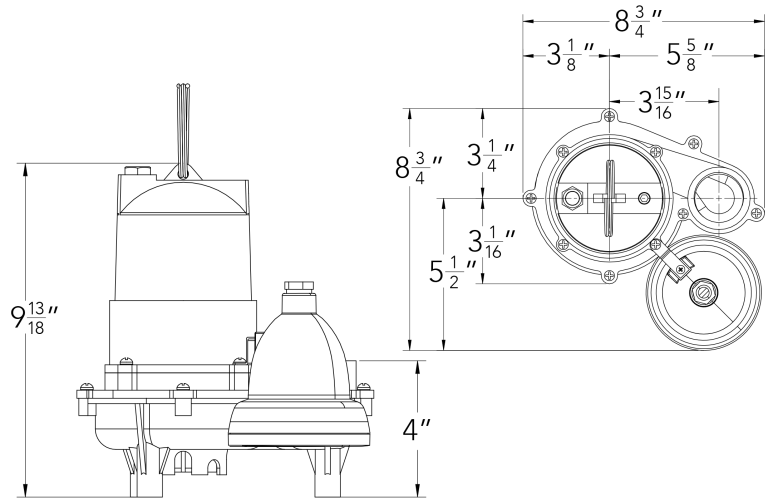

SH30I Sump Pump Dimensions



Pump Features

  • Carbon ceramic mechanical seal
  • Oil-filled motor with automatic reset thermal overload
  • Uses single-row ball bearing construction
  • Ion® digital level control piggyback switch has no moving parts (standard)
  • 3 year residential warranty

______________

SH30i 3 Year Warranty
Operation Manual
Sales Brochure

System Features

  • Carbon ceramic mechanical seal
  • Oil-filled motor with automatic reset thermal overload protection
  • Uses single-row ball bearing construction
  • Piggy back Ion® digital level control switch has no moving parts (standard)
  • Warranty – 3 year residential | 1 year commercial

System Specifications

Typical Applications Basement sump Dewatering
Septic tank effluent
Maximum Capacity Up to 47 GPM
Maximum Head Up to 35‘
Electrical Data 115 V, 1 Ø, 7.0 FLA, 60 Hz
Motor Data 3/10 HP, 3450 RPM
Recommended Minimum Basin Size 18" x 24"
Switch Type Ion Digital Level Control
Materials of Construction Cast iron
Impeller Cast iron vortex
Power Cord 20' Standard
Discharge 1-1/2" NPT
Solids 3/4"
!
